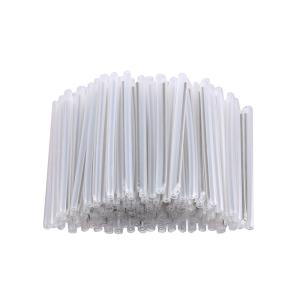

China 45mm fusion splice heat shrink rubber fiber cable protection sleeve tube wholesale

45mm fusion splice heat shrink rubber fiber cable protection sleeve tube

Name: 45mm fusion splice heat shrink rubber fiber cable protection sleeve tube
Brand: DYS/OEM
Price: 1.98 USD

Ask Latest Price

Model Number :Fiber Protection Tube

Type :Protection Tube

Place of Origin :Guangdong, China

Brand Name :DYS/OEM

Use :FTTH

Network :fiber optic

Product name :fiber fusion fiber protection tube

Length :40,45,60mm

Product Type :Fiber Protection Tube

Outer diameter :2.5mm

Color :Clear

Application :FTTH FTTB FTTX Network, FTTX, LAN, WAN, G-Pon, E-Pon Project

Material :PLASTIC MENTAL

Operating temperature :-40~+85

Weight :50g/100pcs

Keywords :fiber cable protection tube

Packaging Details :Individual box or according to customer's request

Port :Shenzhen

Supply Ability :1000000 Pack/Packs per Day

MOQ :10 packs

Price :$1.98/packs 10-99 packs

Contact Now

Add to Cart

View Product Description

Product Description

60mm 45mm 40mm fusion splice heat shrink rubber fiber cable protection sleeve tube

Description / Fiber Optic Fusion Splice Protection Sleeves

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing. The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).

Application / Fiber Optic Fusion Splice Protection Sleeves

1.Telecommunications subscriber loop 2.Fiber to the home (FTTH) 3.LAN/WAN 4.CATV

Feature / Fiber Optic Fusion Splice Protection Sleeves

1. Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strangth at the fusion joint area and keep the optical transmission properties. 2. Moisture resistant for environmental protecion clear sleeve make it easy to detect splice before shrinkage. 3. Easily use and avoid any damages to the oprical fiber during installation. 4. Sealing structure provides good performanc e to the splicing in the environment with temperature and humidity. 5. Bellcore GR-1380 Compliant 6. RoHS & REACH Compliant

Operating Temperture Range / Fiber Optic Fusion Splice Protection Sleeves

* Operating temperature : -45°c~100°c / -45°c ~135°c
* Minimum shrink temperature : 80°c
* Minimum fully recovery temperature : 120°c

45mm fusion splice heat shrink rubber fiber cable protection sleeve tube

Model	Fiber optic heat shrinking sleeve/ tube
Type	Single fiber, Ribbon fiber
Material	Heat shrink tube, fusion tube, 304 steel rod
Length	40, 45, 50, 60mm
Steel rod diameter	1.5, 1.2, 1.0mm
Minimum fully recovery temperature	120 °C
Operating temperature	-45 °C to + 100 °C
Standard Color	Clear

Performance	Test Method	Typical data
Tensile strength	ASTM D 2671	18MPa
Elongation at break	ASTM D 2671	700%
Density	ISO R1183D	0.94g/cm3
Dielectric strength	IEC243	25KV/mm
volume resistance	IEC243	1015Ω.cm
Length changes	ASTM D 2671	±5%

Company Profile

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the honorary title of National High-tech enterprise by Shenzhen government in 2014. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.

End User

FAQ

Q1. Do you provide OEM ODM service ? Yes, we can print your logo or label on the products or on the box. Q2. How can you guarentee the quality ? Build on our perfect quality management system, all of our products were 100% tested before the shipment. Q3. What is your delivery time ? Generally, sample: 3~5 working days. formal order: 7-10 working days. Q4. What's the method of shipment? We accept all shipment , such as Delievery,ocean transport, land transport , airport transport. Q5. What's the Payment? We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram. Q6. Do you provide sample service? A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.
